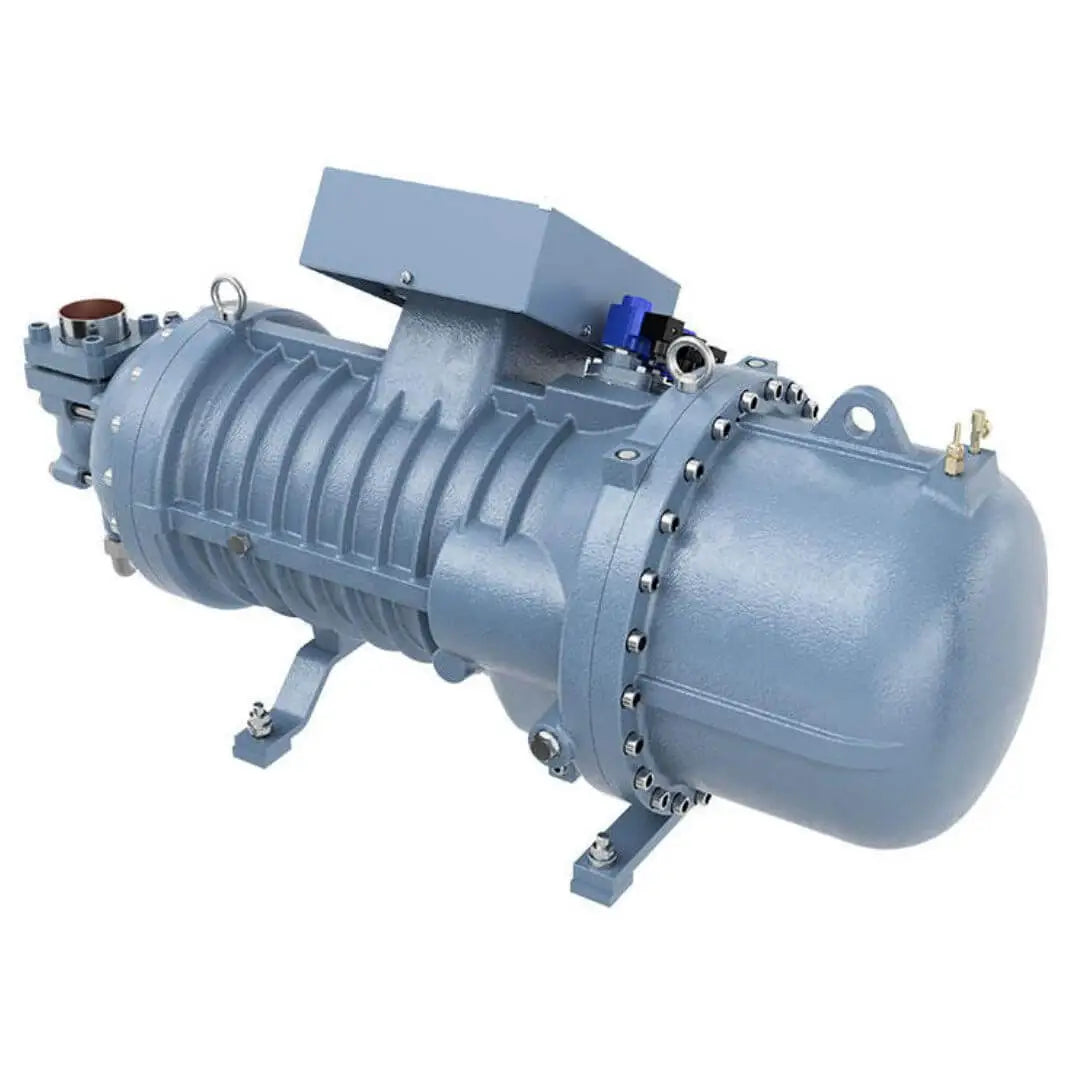

RW3-L095 - Semi-hermetic Screw Compressors

Compressors designed for use in numerous refrigeration applications and for operation in low (L) and medium/high (H) temperature systems, offered with displaced volume from 118 to 700 m3/h and motor powers ranging from 30 to 250 HP. RW3 offers capacity control and configurable Vi ratios.

Applications:

• Low (L) and high (H) evaporation temperatures
• Refrigeration
• Liquid chillers
• Heat pumps
• Process cooling

Advantages

• Quiet and vibration-free operation
• Ease of installation and maintenance
• Compact dimensions
• Different compression ratio (Vi) to select the best solution according to the customer's application Internal capacity control system: step or stepless
• Modern rotor profile for higher specific displacement
• Suitable for heavy loads and continuous operations
• Electronic motor protection with 6 PTC sensors
• Suitable for variable speed operations with external inverter
• Long-life rolling bearings with low-noise operation
