Potenza in KW: 70
Spostamento 50/60hz: 281,30 / 337,60 m³/h
Alimentazione: 380-420V Y/YY -3- 50Hz PW

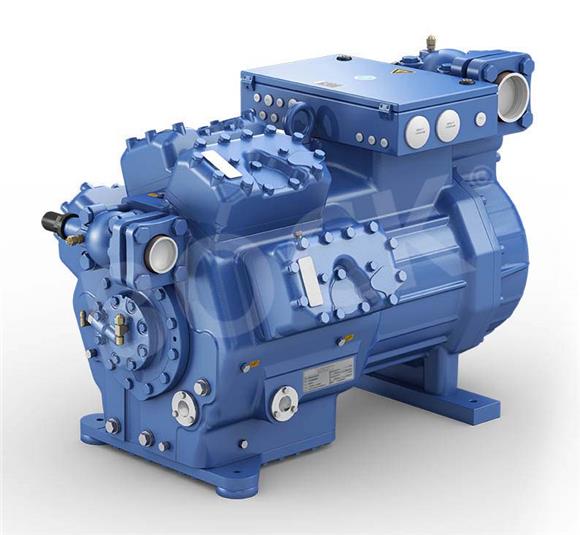

BOCK piston compressor HGX88e/3235-4 S
Semi-hermetic 8-cylinder suction gas-cooled reciprocating compressor, compact design, with optimized "Mexxflow" plate valve system.
"Mexxflow" is a highly efficient and reliable plate valve system with higher refrigeration capacity at lower energy consumption.
The compressor features the best possible maintainability (e.g., due to the replaceable drive motor), excellent operating comfort, and efficient operating performance.
The suction cover can be rotated 90° in any case. Reliable lubrication of the mechanism is ensured by a direction-independent oil pump and a large-volume oil sump.
The optional oil pan heater uses an immersion sleeve and can therefore be replaced without intervening in the refrigeration cycle.
An oil level regulator can be directly connected to one of the three standard sight glasses.
The large-volume electrical terminal block, made of solid metal, has easy quick-release fasteners.
INT69G electronic motor protection uses PTC sensors to monitor winding temperature (as standard equipment) and optional exhaust gas temperature.
