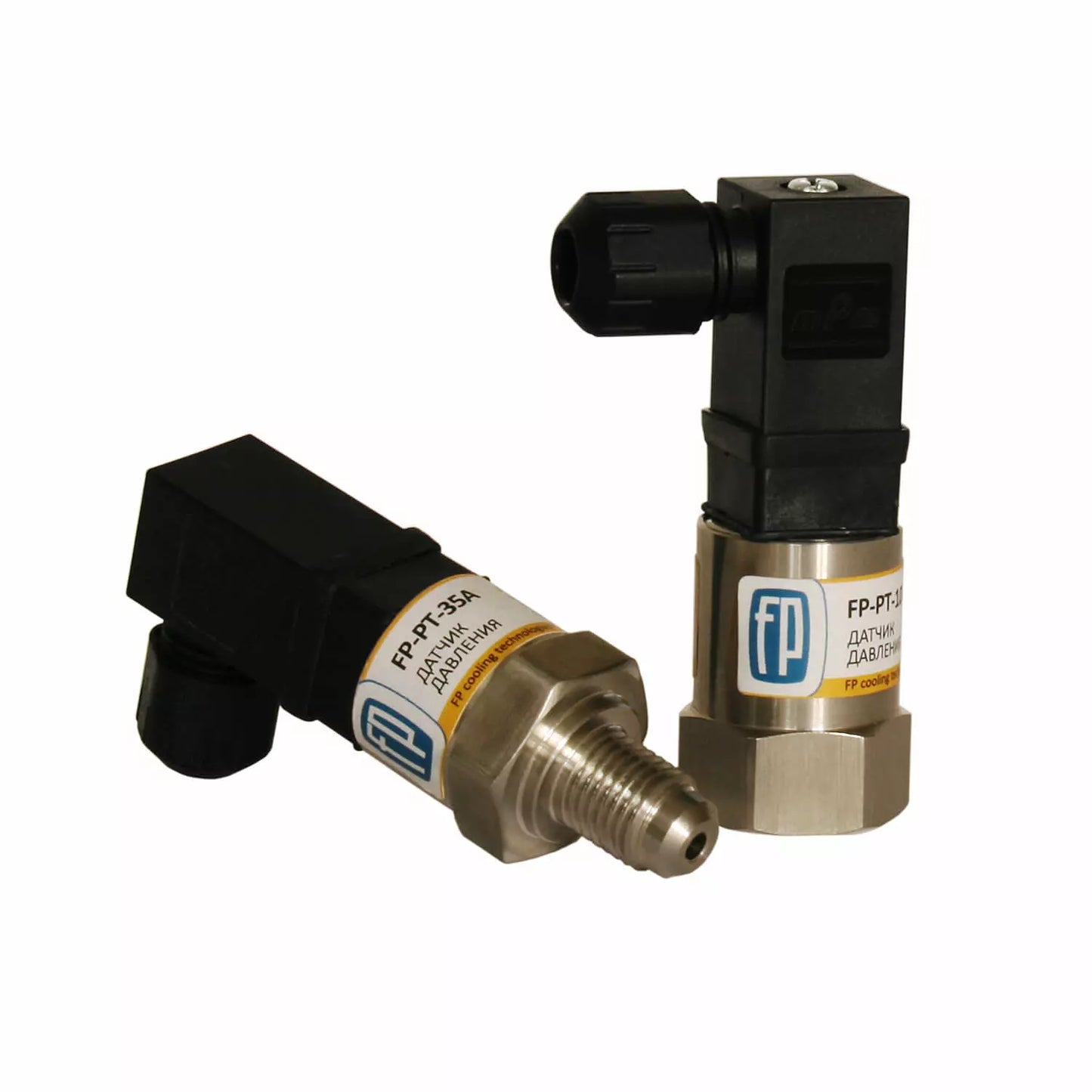

FP-PT-10B Pressure Sensor

The FP-PT pressure sensors are designed to install on the pressure side and suction line of the refrigeration circuit to measure relative pressure.

The main function of the sensor is to transform the working pressure field into a fieldless current signal of 4-20m.

Pressure sensors are elements of automation, control and regulation of the refrigeration cycle, compatible with all types of refrigerants and with high resistance to vibration and shock.

The sensor body is made of corrosion-resistant stainless steel.

• Pressure range, bar: -0,5.....10
• Connection: 7/16-20 UNF (B) (1/4 SAE) M
• Output, mA: 4....20
• Voltage, VDC: 8.....25
