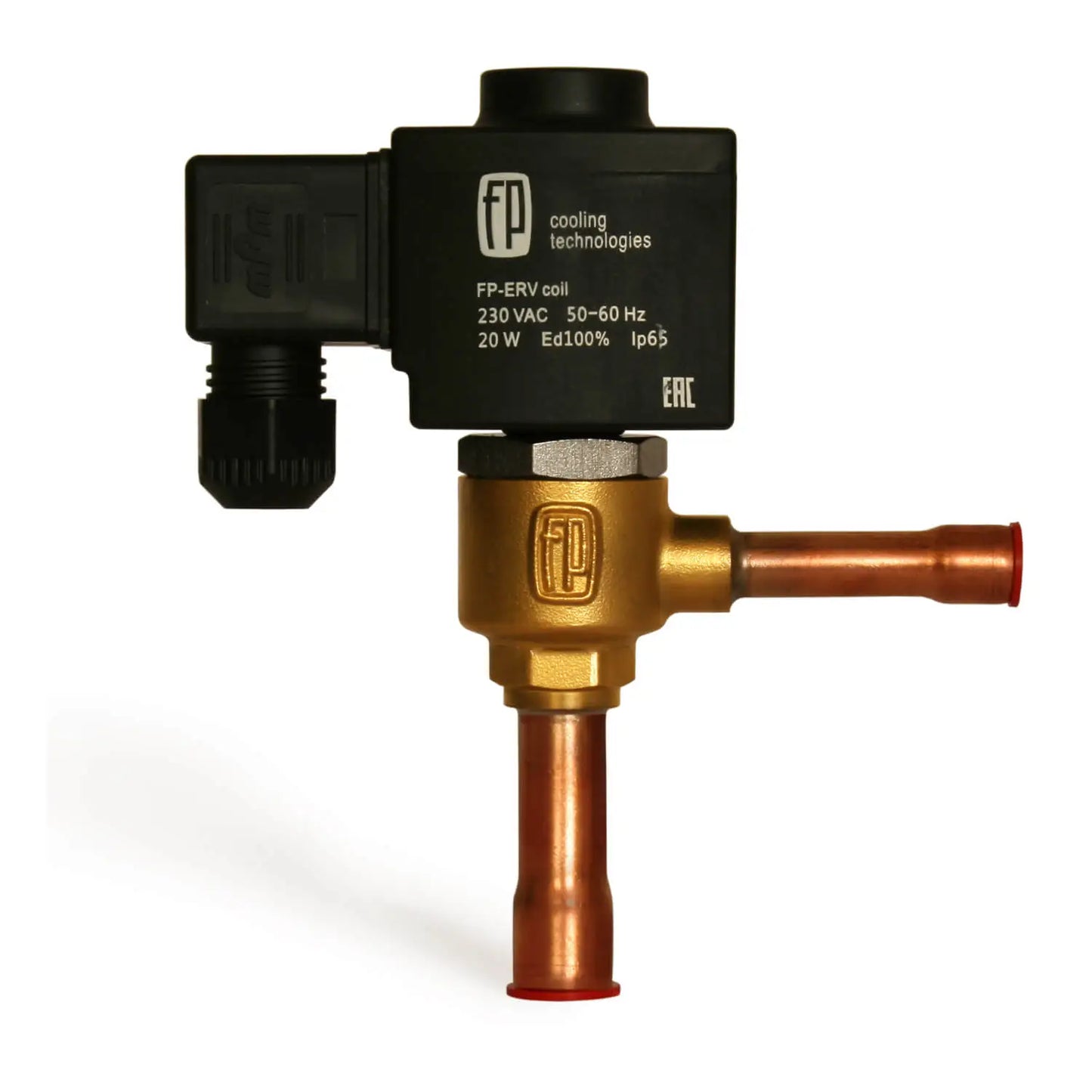

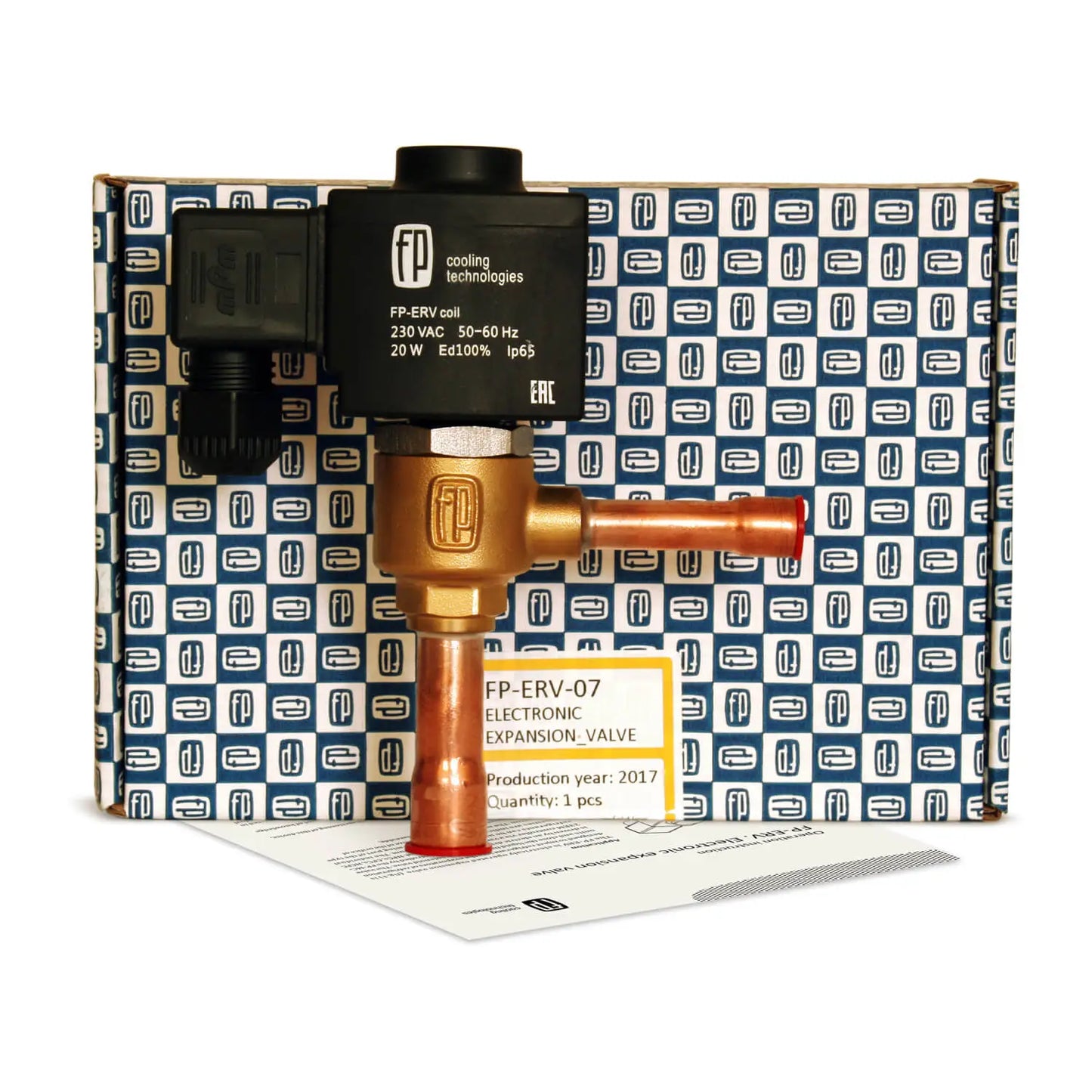

FP-ERV electronic expansion valve

The FP-ERV electronic expansion valve is an electrically operated expansion valve designed for refrigeration and air-conditioning systems.

The electronic expansion valve is controlled by the FP-MC-23-EM refrigeration controller.

The valve capacity is between 1 and 16.3 kW (R22) and designed by orifice (FP-ERV-1 to FP-ERV-6).

PARAMETERS

• Voltage: 220 V +/-10%
• Ingress protection rating: IP 67
• Operating principle: PWM
• Recommended time: 6 seconds
• Capacity (R22): 0.36...16.3 kW
• Capacity range: 10...100 %
• Working temperature: -50....+50 °C
• Plunger leakage: < 0.02% from kv-value
• MOPD: before 35 bar
• Maximum operating pressure: 45 bar
